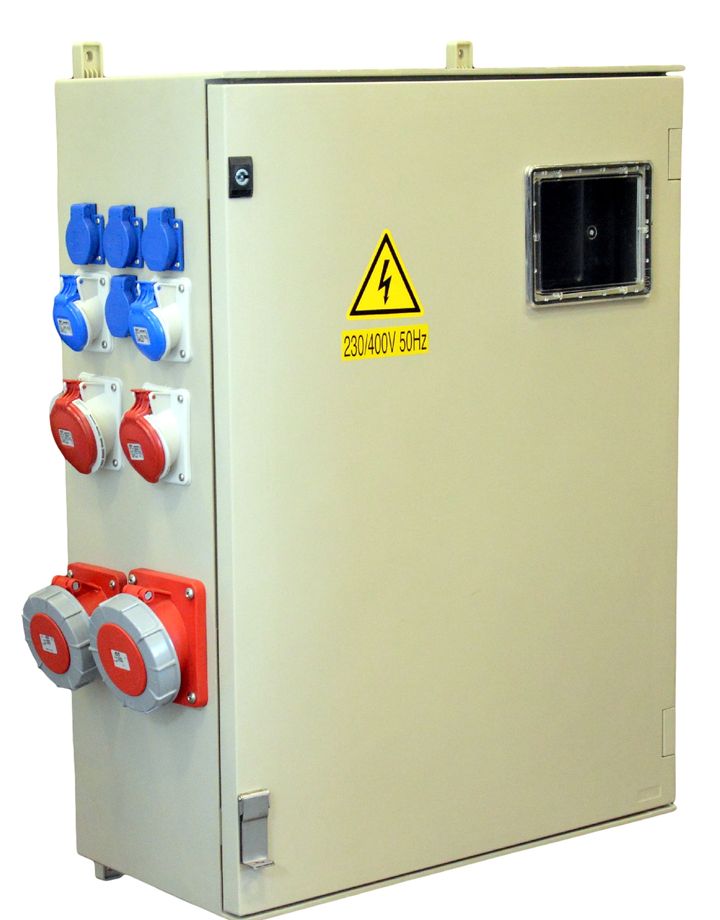

Werfkast MIRKO 100A + aansluitmod. 25x60 + netkeuze
Maximum power = 69kVA (max. 100A in a 3x400V+N network).
Please note: distribution system operators (DSO) usually require metering by a metering unit (supplied by the DSO) as soon as the current exceeds 80A in a 3x400V+N network (55kVA) or over 100A in a 3x230V network (40kVA).
Equipped with a lead-sealable mains switch (position "230V" for 3x230V networks, position "400V" for 3x400V+N networks).
Equipped with protection against incorrect positioning of the mains switch.
Equipped with a grounding switch.
With viewing window for meter reading.
Material: fiberglass-reinforced polyester.
Dimensions: H x W x D: 840 x 635 x 300mm.
IP44.
Fitted with 25D60 connection module.
Fitted with wall-mounting brackets.
Other configurations are available on request.
Please note: distribution system operators (DSO) usually require metering by a metering unit (supplied by the DSO) as soon as the current exceeds 80A in a 3x400V+N network (55kVA) or over 100A in a 3x230V network (40kVA).
Equipped with a lead-sealable mains switch (position "230V" for 3x230V networks, position "400V" for 3x400V+N networks).
Equipped with protection against incorrect positioning of the mains switch.
Equipped with a grounding switch.
With viewing window for meter reading.
Material: fiberglass-reinforced polyester.
Dimensions: H x W x D: 840 x 635 x 300mm.
IP44.
Fitted with 25D60 connection module.
Fitted with wall-mounting brackets.
Other configurations are available on request.
| 2p+T dom 16A: 4 |
| 2p+T CEE 16A: 2 |
| 3p+N+T CEE 16A: 1 |
| 3p+N+T CEE 32A: 1 |
| 3p+N+T CEE 63A: 1 |
| 3p+N+T CEE 125A: 1 |
