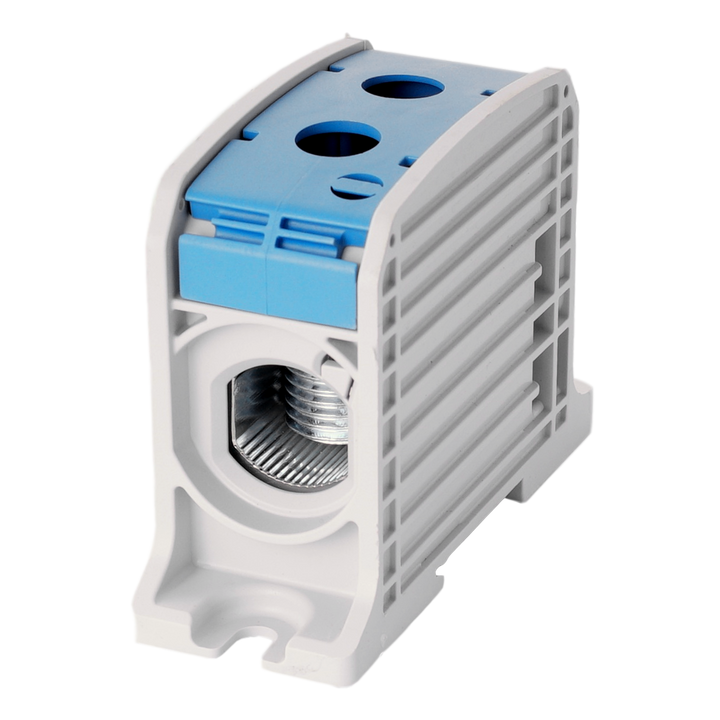

Aansluitklem RKA 1p 185mm² Cu+Al blauw
I(max) :
1000Vac/dc 365A Cu
600V 310A Cu/250A Al
additional measuring terminal integrated by default
IP20
halogen-free, self-extinguishing
captive screws with constant tightening torque
can be coupled with RKA 185mm² terminals
DIN rail or screw mounting
ground terminal color according to IEC60947-7-1 standard
with profile for marking
for Cu and Al conductors
1000Vac/dc 365A Cu
600V 310A Cu/250A Al
additional measuring terminal integrated by default
IP20
halogen-free, self-extinguishing
captive screws with constant tightening torque
can be coupled with RKA 185mm² terminals
DIN rail or screw mounting
ground terminal color according to IEC60947-7-1 standard
with profile for marking
for Cu and Al conductors
| I(max): 365 A |
| Input section: mm² mm² |
| Output section: mm² mm² |
| Color: bleu |
| Number of connections 185 mm²: 2 |
