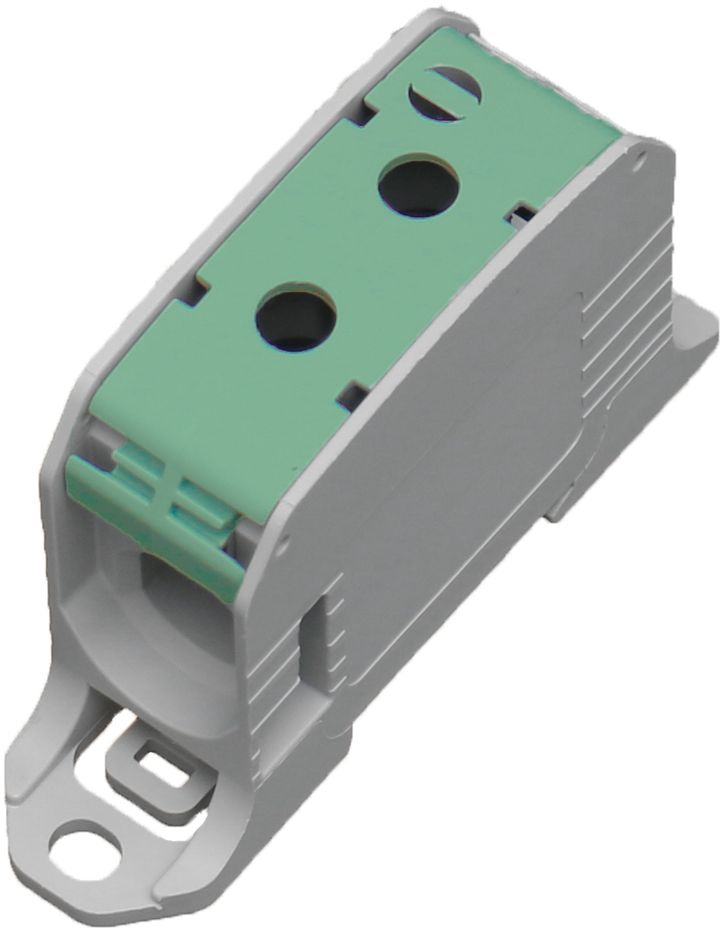

Aansluitklem RKA 1p 95mm² Cu+Al bruin
I(max):
1000Vac/dc 245A Cu
600V 200A Cu/155A Al
additional measurement terminal integrated by default
IP20
halogen-free, self-extinguishing
captive screws with constant tightening torque
can be coupled with RKA 95mm² terminals
mounting on DIN rail or by screws
earth terminal color according to standard IEC60947-7-1
with profile for marking
for Cu and Al conductors
1000Vac/dc 245A Cu
600V 200A Cu/155A Al
additional measurement terminal integrated by default
IP20
halogen-free, self-extinguishing
captive screws with constant tightening torque
can be coupled with RKA 95mm² terminals
mounting on DIN rail or by screws
earth terminal color according to standard IEC60947-7-1
with profile for marking
for Cu and Al conductors
| I(max): 245 A |
| Input section: mm² mm² |
| Output section: mm² mm² |
| Color: brun |
| Number of connections 95 mm²: 2 |
