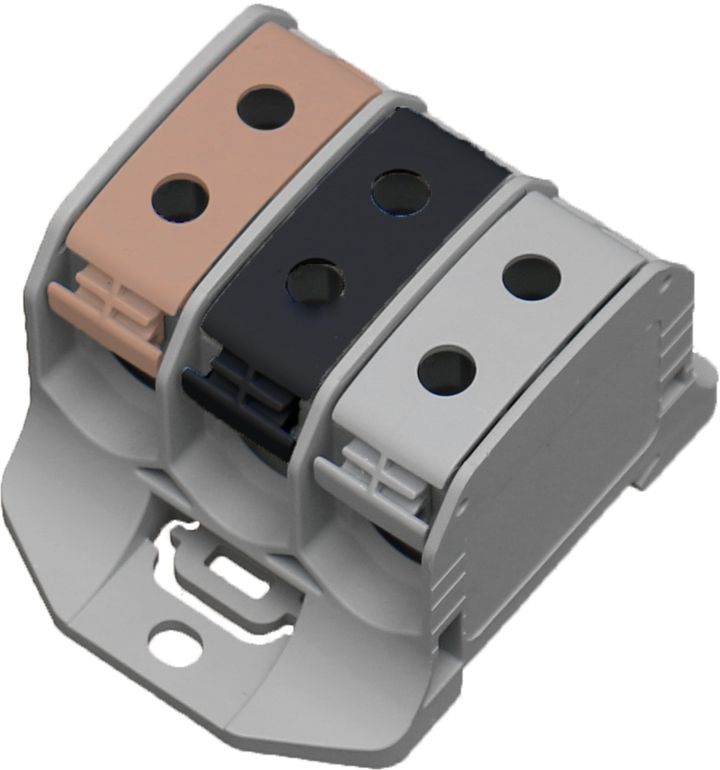

Enkele aansluitklem 50mm² 3-polig
I(max):
1000Vac/dc 160A Cu
600V 150A Cu/120A Al
additional measurement terminal integrated by default
IP20
halogen-free, self-extinguishing
captive screws with constant tightening torque
can be coupled with RKA 50mm² terminals
mounting on DIN rail or by screws
earth terminal color according to standard IEC60947-7-1
with profile for marking
for Cu and Al conductors
1000Vac/dc 160A Cu
600V 150A Cu/120A Al
additional measurement terminal integrated by default
IP20
halogen-free, self-extinguishing
captive screws with constant tightening torque
can be coupled with RKA 50mm² terminals
mounting on DIN rail or by screws
earth terminal color according to standard IEC60947-7-1
with profile for marking
for Cu and Al conductors
| I(max): 160 A |
| Input section: mm² mm² |
| Output section: mm² mm² |
| Color: brun-noir-gris |
| Number of connections 50 mm²: 2 (3x) |
