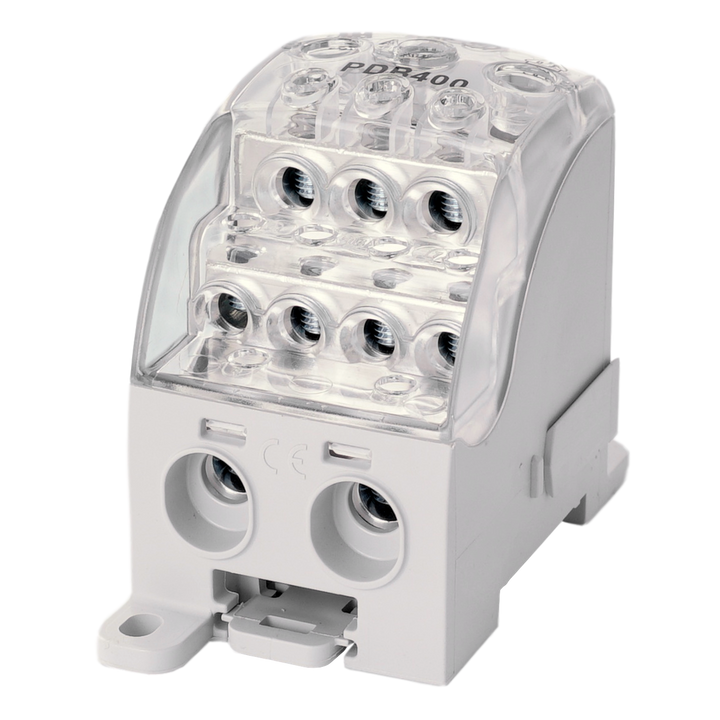

Verdeelklem PDB400 1p 120, 2x35, 3x25, 4x16mm² Cu+Al grijs
PDB400
I(max): 1000Vac/1500Vdc 400A Cu
IP20
halogen-free, self-extinguishing
captive screws with constant tightening torque
can be coupled with PDB400 terminals
DIN rail or screw mounting
for Cu and Al conductors
I(max): 1000Vac/1500Vdc 400A Cu
IP20
halogen-free, self-extinguishing
captive screws with constant tightening torque
can be coupled with PDB400 terminals
DIN rail or screw mounting
for Cu and Al conductors
| I(max): 400 A |
| Color: gris + transparent |
| For drivers: Cu + Al |
| Number of connections 16 mm²: 4 |
| Number of connections 25 mm²: 3 |
| Number of connections 35 mm²: 2 |
| Number of connections 120 mm²: 1 |
