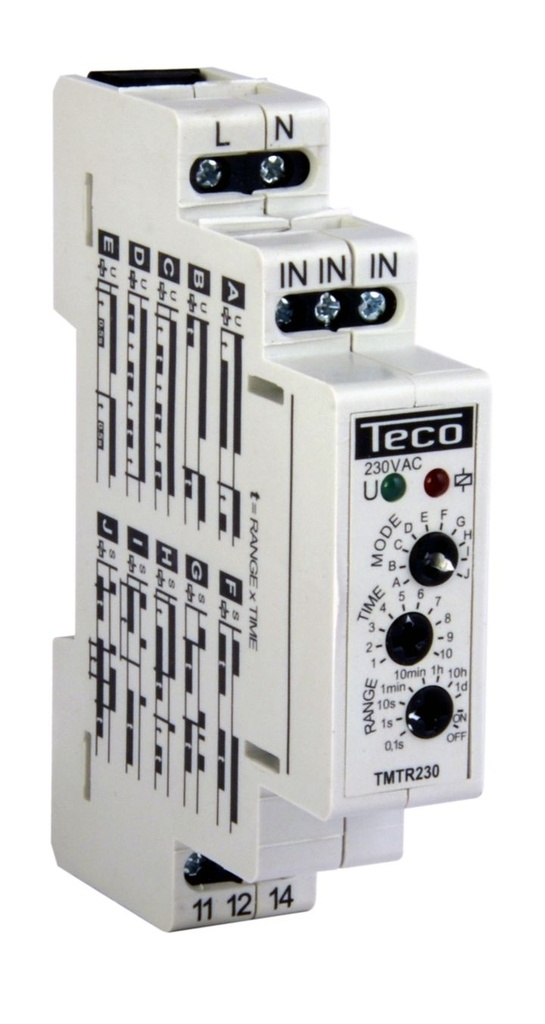

Relais temporisé multifonction Teco 1 inv. 16A 230V

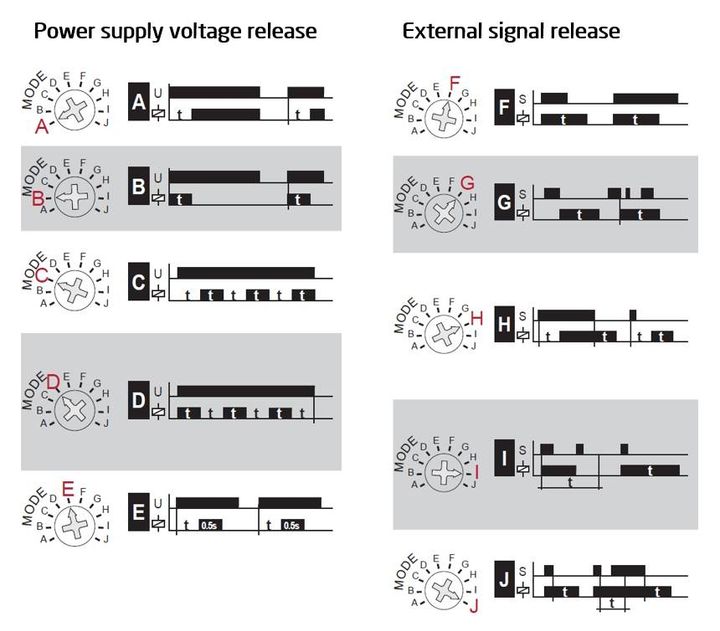

power-on delayed engagement:
A - power-on delayed trip
B - power-on delayed release
C - flashing beginning with OFF
D - flashing beginning with ON
E - pulsation 0.5s delayed on power-up
timers triggered by an external signal (L or N):
F - delayed engagement on rising edge
G - delayed engagement on falling edge
H - delayed cut-in on rising edge and delayed cut-out on falling edge
I - remote switch with time delay
J - rising edge cut-in with delayed falling edge release (resettable)
35mm rail mounting (EN60715)
A - power-on delayed trip
B - power-on delayed release
C - flashing beginning with OFF
D - flashing beginning with ON
E - pulsation 0.5s delayed on power-up
timers triggered by an external signal (L or N):
F - delayed engagement on rising edge
G - delayed engagement on falling edge
H - delayed cut-in on rising edge and delayed cut-out on falling edge
I - remote switch with time delay
J - rising edge cut-in with delayed falling edge release (resettable)
35mm rail mounting (EN60715)
| I(n) contacts: 16 A |
| U(n): 230 V |
| Adjustment range: 0,1s - 10j |
| Contacts: 1 INV |
| No. of modules: 1 |
| U(n) contacts: 250 Vac |
