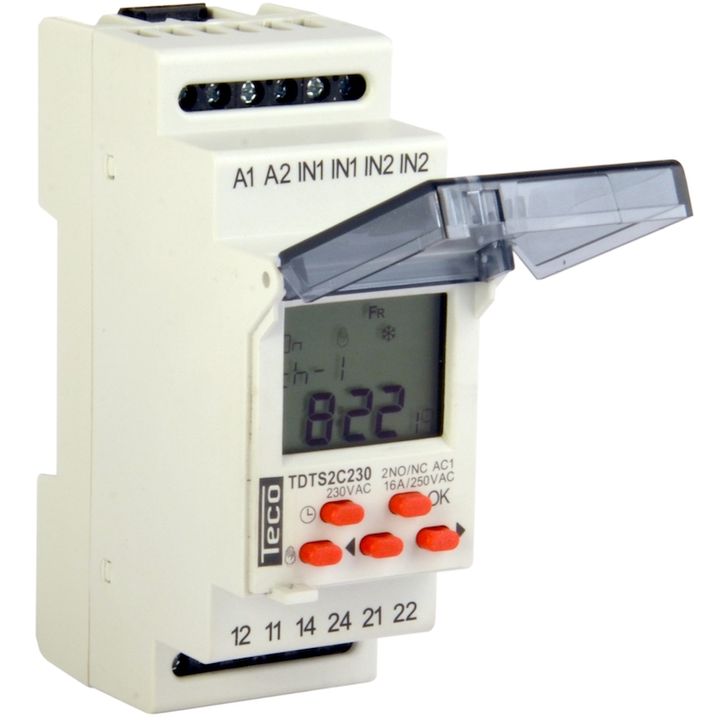

Digital Time Switch 2w 16A 230V replaceable battery
2 channels
backlit display
nominal voltage: 230Vac 50/60Hz
rated power consumption: 1.45W
clock autonomy in the event of power failure: 3 years
programming memory in the event of power failure: 10 years
max. 100 programmable on/off pairs per channel
pulse mode: from 1 to 99s
choice of 16 different weekly patterns
random mode
summer/winter time changeover: manual or automatic
2 programmable inputs, which can be used to force one channel (at choice) of the switch into "manual off", "manual on", "automatic" or "random" mode with an external switch
35mm rail mounting (EN60715)
operating temperature range: -20°C to +60°C
backlit display
nominal voltage: 230Vac 50/60Hz
rated power consumption: 1.45W
clock autonomy in the event of power failure: 3 years
programming memory in the event of power failure: 10 years
max. 100 programmable on/off pairs per channel
pulse mode: from 1 to 99s
choice of 16 different weekly patterns
random mode
summer/winter time changeover: manual or automatic
2 programmable inputs, which can be used to force one channel (at choice) of the switch into "manual off", "manual on", "automatic" or "random" mode with an external switch
35mm rail mounting (EN60715)
operating temperature range: -20°C to +60°C
| U(n): 230 V |
| Number of modules: 2 |
| Contacts: 2 |
| I(n) contact: 16 A |
| U(n) contacts: 250 Vac |
