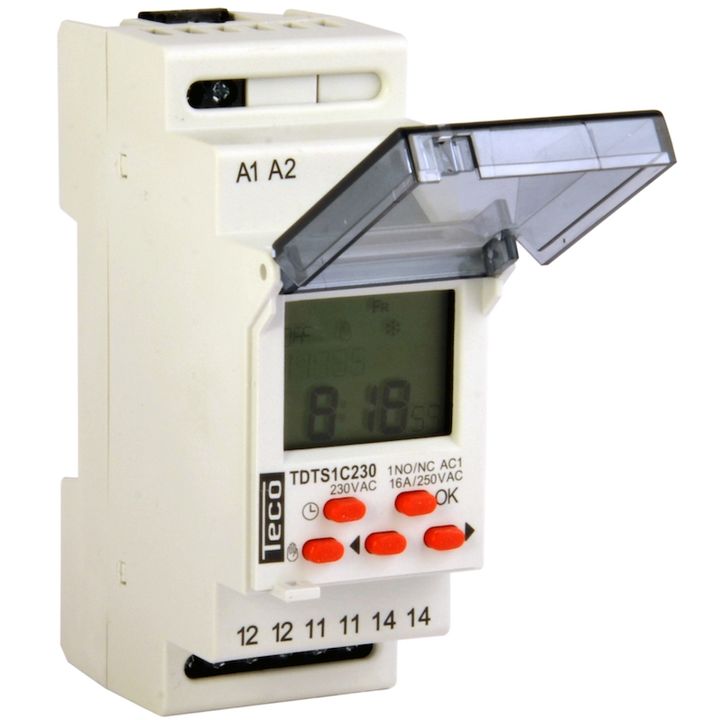

Digital Time Switch 1w 16A 230V replaceable battery
1 channel
nominal voltage: 230Vac 50/60Hz
rated power consumption: 1.45W
clock autonomy in the event of power failure: 3 years
programming memory in the event of power failure: 10 years
max. 200 programmable on/off pairs
pulse mode: from 1 to 99s
choice of 16 different weekly patterns
random mode
summer/winter time changeover: manual or automatic
35mm rail mounting (EN60715)
operating temperature range: -20°C to +60°C
nominal voltage: 230Vac 50/60Hz
rated power consumption: 1.45W
clock autonomy in the event of power failure: 3 years
programming memory in the event of power failure: 10 years
max. 200 programmable on/off pairs
pulse mode: from 1 to 99s
choice of 16 different weekly patterns
random mode
summer/winter time changeover: manual or automatic
35mm rail mounting (EN60715)
operating temperature range: -20°C to +60°C
| U(n): 230 V |
| Number of modules: 2 |
| Contacts: 1 |
| I(n) contact: 16 A |
| U(n) contacts: 250 Vac |
