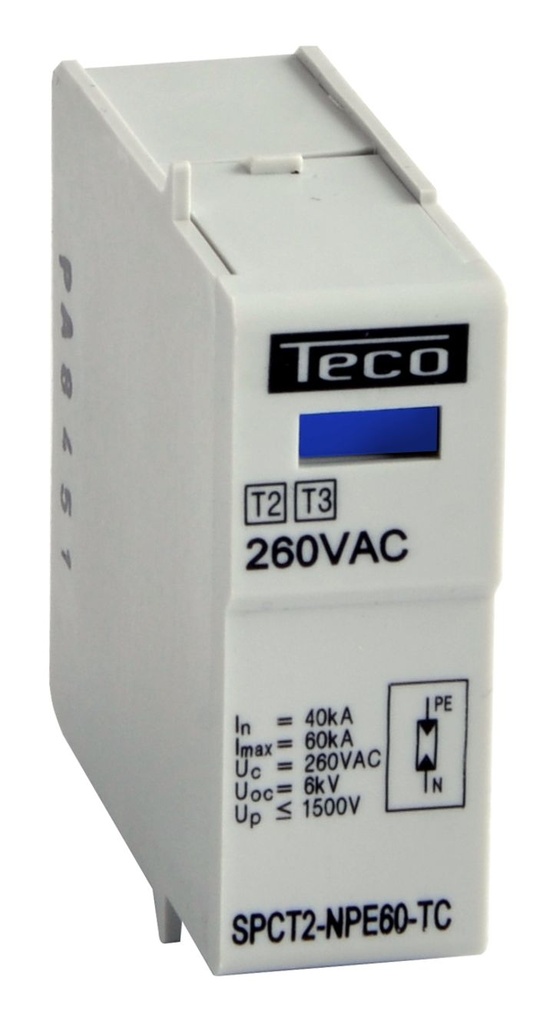

Surge arrester plug-in unit 260VAC 20kA
for replacing defective modules in 1p+N and 3p+N arresters
visual indication to check spark gap status
SPD type T2 to EN 61 643-11
class II testing to IEC 64643-1-A1
permissible temperature range: -40°C to +70°C
duty cycle (voltage rise 5kV/µs): < 100ns
visual indication to check spark gap status
SPD type T2 to EN 61 643-11
class II testing to IEC 64643-1-A1
permissible temperature range: -40°C to +70°C
duty cycle (voltage rise 5kV/µs): < 100ns
| U(p) à I(n): < 1000 V V |
| frequenceMax: 60 Hz |
| frequenceMin: 50 Hz |
| Code: 173979 |
| 820: 40 kA |
| U(n) N-PE (200ms): 260 Vac |
| I(n) 8/20 µs: 20 kA |
