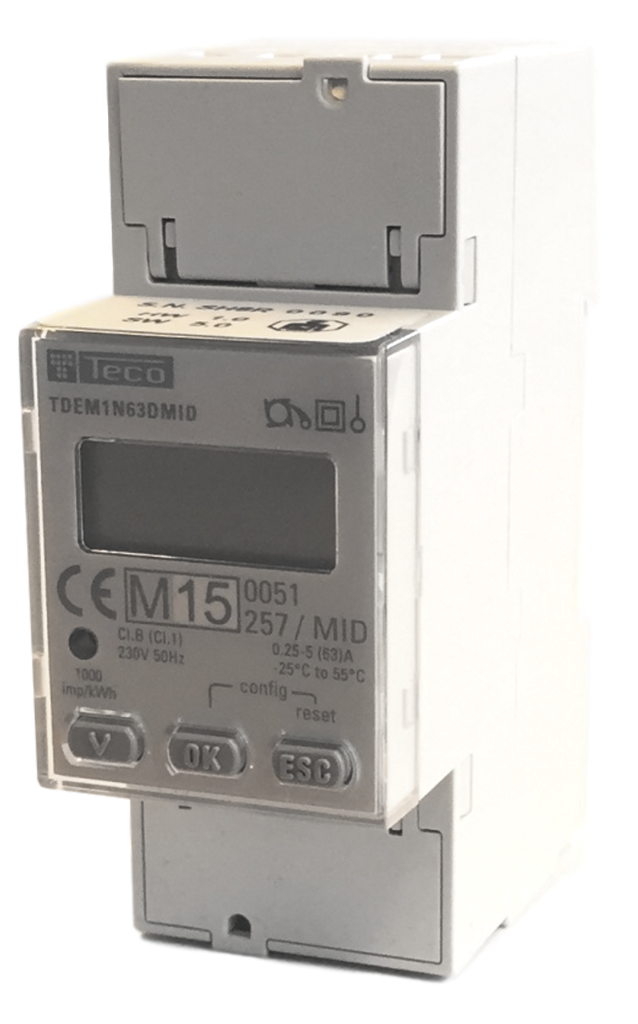

Digitaler Energiezähler Teco 1P+N 1 Modul 63A 2 Tarifzähler MID
single-phase
connection: direct
MID standard
displayable values:
- active imported energy tariff 1
- active energy export tariff 1
- reactive energy import tariff 1
- reactive energy export tariff 1
- active energy imported tariff 2
- active energy exported tariff 2
- reactive energy imported tariff 2
- reactive energy export tariff 2
- active power
- reactive power
- voltage
- current
- cos phi
- frequency
additional sub-metering with reset is available
accuracy:
- active energy: class B (according to EN-50470)
- reactive energy: class 2 (according to IEC 62053-23)
capacity of main circuit terminals: 16mm² (for all models)
supplied with lead-sealable terminal covers
2 programmable pulse outputs
metrological LED on front panel (1000 imp/kWh active energy imported or exported)
operating temperature range: -25...+55 °C
in compliance with standards EN 5047-1, EN 50470-3 and 62053-31
35mm rail mounting (EN60715)
connection: direct
MID standard
displayable values:
- active imported energy tariff 1
- active energy export tariff 1
- reactive energy import tariff 1
- reactive energy export tariff 1
- active energy imported tariff 2
- active energy exported tariff 2
- reactive energy imported tariff 2
- reactive energy export tariff 2
- active power
- reactive power
- voltage
- current
- cos phi
- frequency
additional sub-metering with reset is available
accuracy:
- active energy: class B (according to EN-50470)
- reactive energy: class 2 (according to IEC 62053-23)
capacity of main circuit terminals: 16mm² (for all models)
supplied with lead-sealable terminal covers
2 programmable pulse outputs
metrological LED on front panel (1000 imp/kWh active energy imported or exported)
operating temperature range: -25...+55 °C
in compliance with standards EN 5047-1, EN 50470-3 and 62053-31
35mm rail mounting (EN60715)
| I(n): 63 A A |
| U(n): 240 V V |
| Code: 180648 |
| Type: mono |
| No. of modules: 2 |
| MID: • |
| Number of tariffs: 2 |
