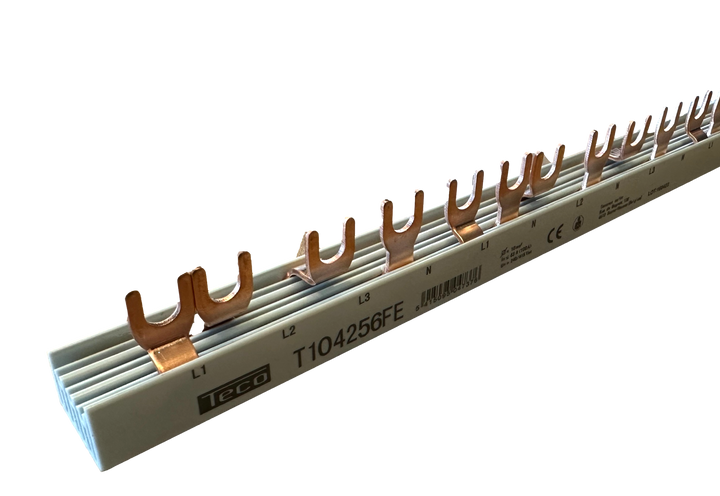

Gabelkamm Teco 10mm² 56mod 4p-2p ausgewogen
Grey.
I(m) = I(max) supplied to the middle of the comb.
I(e) = I(max) supplied at the end of the comb (beginning or end).
Maximum short-circuit current: 26kA.
Phase and neutral marked on both sides.
I(m) = I(max) supplied to the middle of the comb.
I(e) = I(max) supplied at the end of the comb (beginning or end).
Maximum short-circuit current: 26kA.
Phase and neutral marked on both sides.
| Number of poles: 4 |
| Type: Fourche |
| Section: 10 mm² |
| No. of modules: 56 |
| I(e): 63 A |
| I(m): 100 A |
| Scheme: L1-L2-L3-N-L1-N-L2-N-L3-N- L1-N-L2-N-L3-N... |
