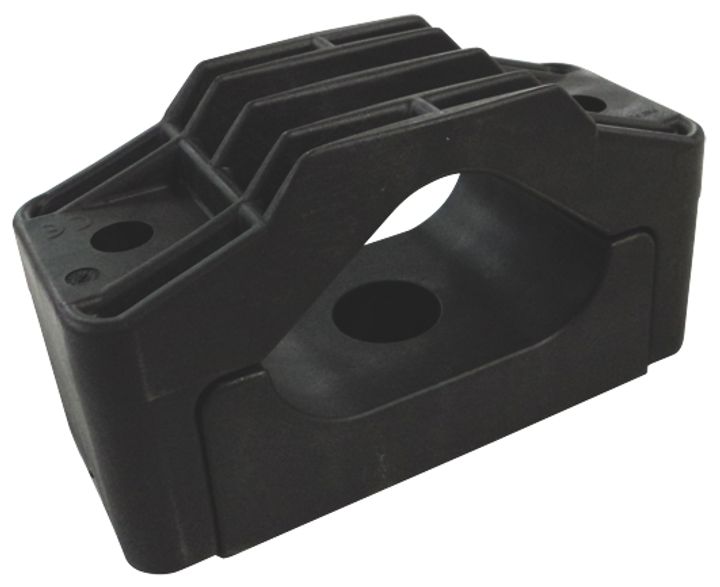

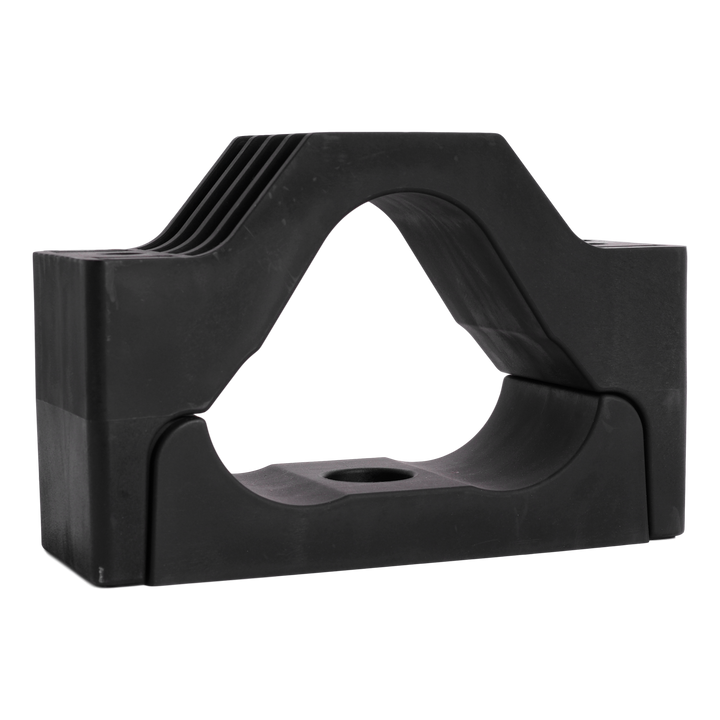

Fixation pour 3 câbles 67-82mm (triangle)
suitable for fastening three cables with one low-, medium- or high-voltage conductor
material: glass-fiber reinforced polyamide, bending strength 210 N/mm², tensile strength 120N/mm², resistant to UV rays, salt water, ozone, oils and alkalis
resistant to UV rays, salt water, ozone, oils and alkalis
self-extinguishing to UL94-V-0 and DIN 5510-2:2009
coefficient of thermal expansion: +0.01%/+10°C
temperature range: -50°C to +120°C stable, +220°C peak
stainless steel fasteners suitable for almost any assembly are available on request
halogen-free
material: glass-fiber reinforced polyamide, bending strength 210 N/mm², tensile strength 120N/mm², resistant to UV rays, salt water, ozone, oils and alkalis
resistant to UV rays, salt water, ozone, oils and alkalis
self-extinguishing to UL94-V-0 and DIN 5510-2:2009
coefficient of thermal expansion: +0.01%/+10°C
temperature range: -50°C to +120°C stable, +220°C peak
stainless steel fasteners suitable for almost any assembly are available on request
halogen-free

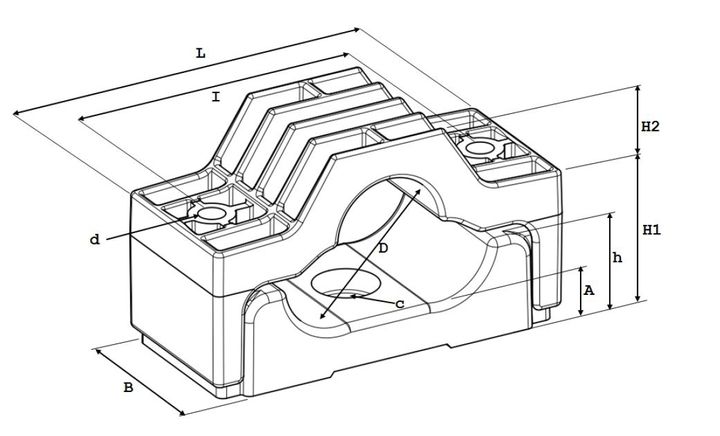

| B: 100 mm |
| D: 16.5 mm |
| H: 140 mm |
| Cable: 67-82 mm |
