Coffre de connexion pour Mirko 125
Some DSOs require the use of an intermediate box for connecting cables with cross-sections larger than 25 mm². They also require the terminal box to be in the 25x60 range. This product integrates the DSO's requirements into a professional, robust, practical and reusable solution that can be mounted on a site cabinet as required.

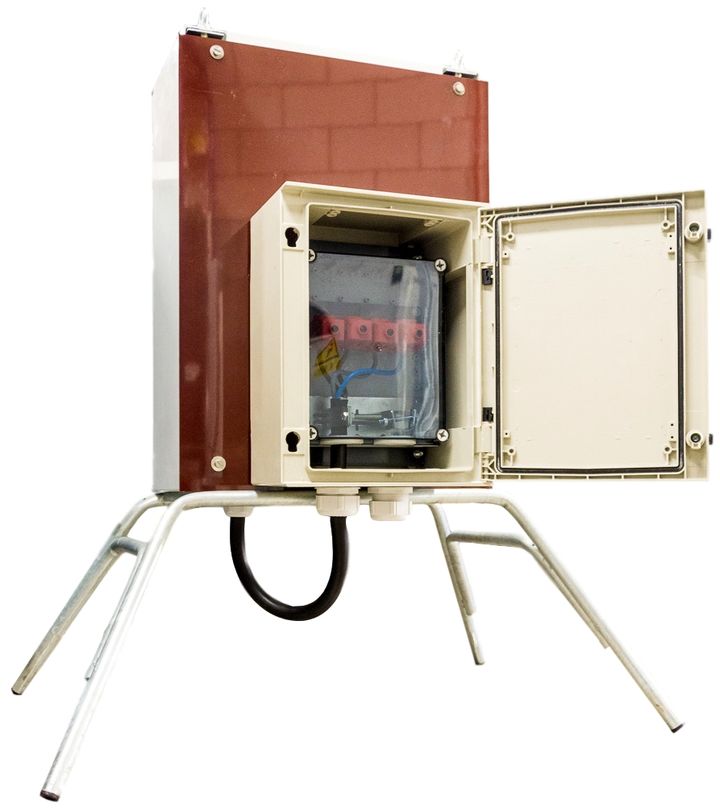

Mounted on the back of the site box with inserts, without altering the double insulation or the degree of tightness.
If wall-mounted, the connection box can be attached next to the site box.
Reusable. Please note that once the inserts have been fitted, they cannot be removed. For mounting on another cabinet, a new set of inserts must be purchased (item: NSYTEX8).
IP66.
IK10.

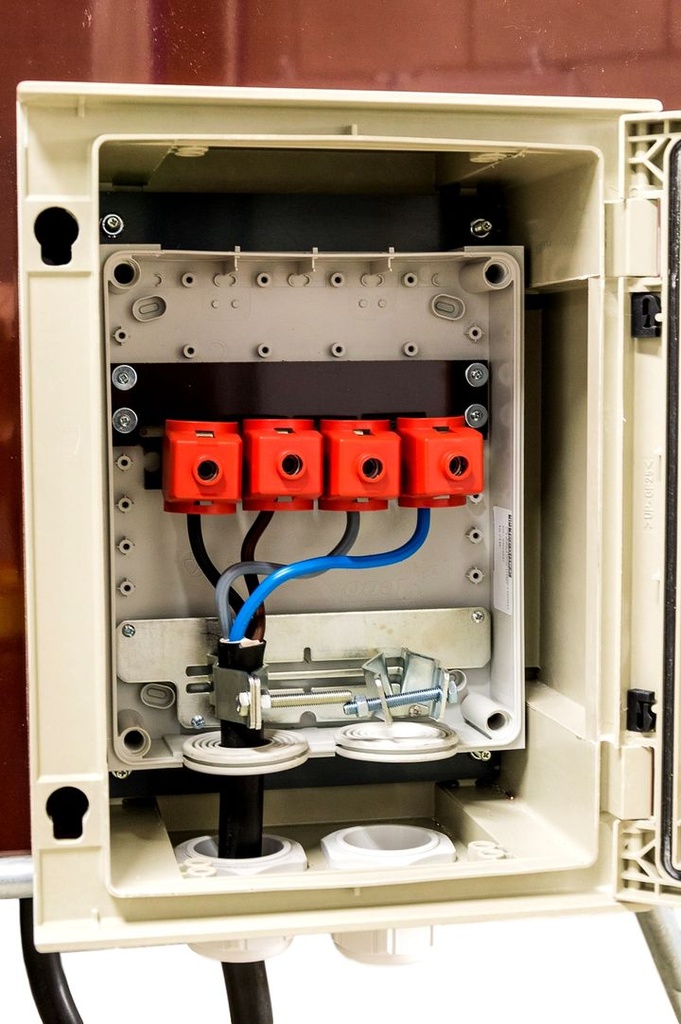

2m EXVB,4x25mm², stripped and cut to size, included.
Cable glands: 1x M40 (outlet), 1x M63 (inlet).
Key lockable (spare key included).
Mounted on the back of the site box with inserts, without altering the double insulation or the degree of tightness.
If wall-mounted, the connection box can be attached next to the site box.
Reusable. Please note that once the inserts have been fitted, they cannot be removed. For mounting on another cabinet, a new set of inserts must be purchased (item: NSYTEX8).
IP66.
IK10.
2m EXVB,4x25mm², stripped and cut to size, included.
Cable glands: 1x M40 (outlet), 1x M63 (inlet).
Key lockable (spare key included).
| Depth: 245 mm |
| Height: 830 mm |
| Width: 620 mm |
| Combine with: MIRKO125 |
