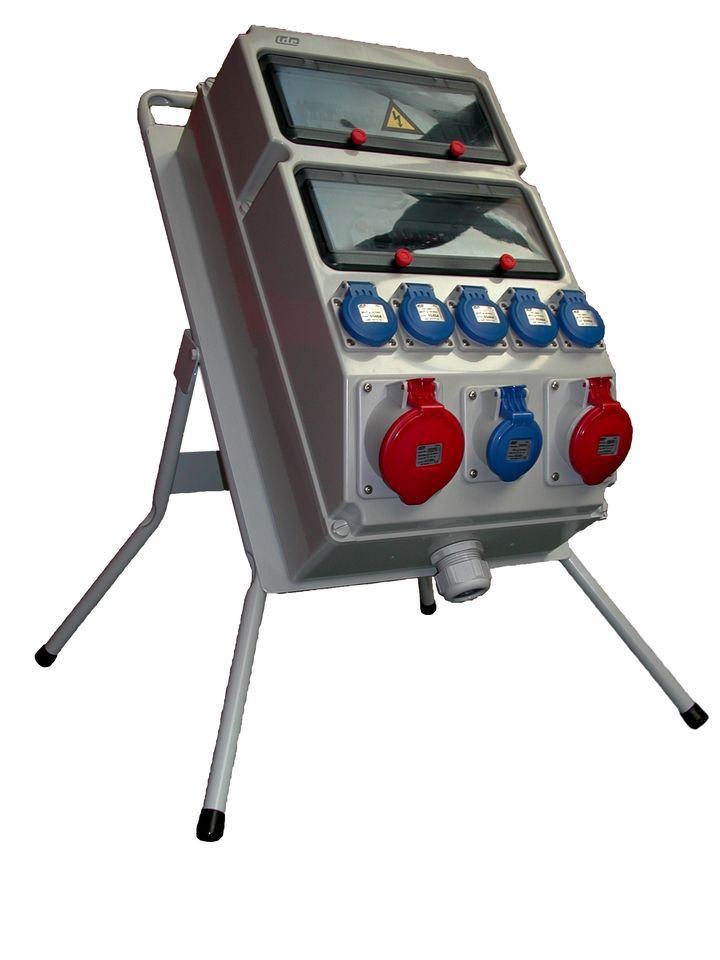

Coffret de distr. en pvc 63A +frame +com. rés.
equipped with lead-sealable mains switch (position "240V" for 3x220V mains, position "400V" for 3x400V+N mains)
power supply: via cable gland
protections are accessible from the outside via several hinged windows
foldable chassis for easy transport
dimensions: H x W x D: 640 x 540 x 540mm (frame unfolded)
IP44 PROTECTION
other configurations available on request
power supply: via cable gland
protections are accessible from the outside via several hinged windows
foldable chassis for easy transport
dimensions: H x W x D: 640 x 540 x 540mm (frame unfolded)
IP44 PROTECTION
other configurations available on request
| Frame: • |
| 2p+T dom 16A: 5 |
| 2p+T CEE 16A: 1 |
| 3p+N+T CEE 16A: 1 |
| 3p+N+T CEE 32A: 1 |
