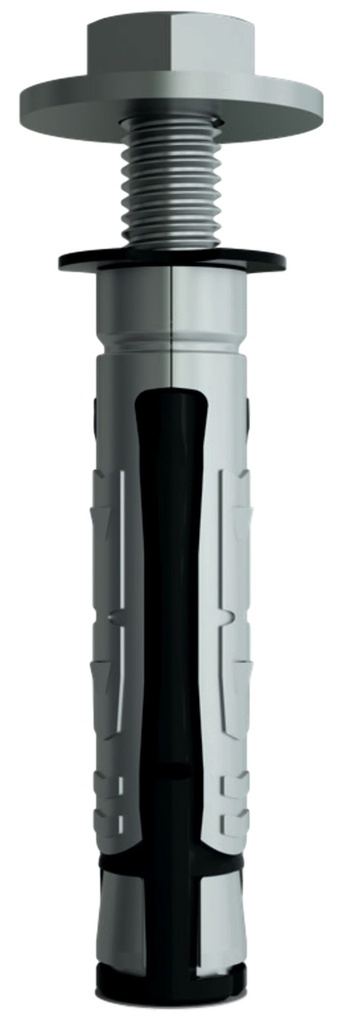

Cheville lourde polyvalente Trider avec vis hex. M10
For hollow or solid materials.
Cold-rolled steel, electrolytically galvanized, copolymer.
Universal mechanical anchor with complementary double expansion.
Designed as a faster, more economical alternative to chemical anchors.
Hexagonal screw 8.8.
Maximum load in kN (± 100 kg):
M1 = uncoated hollow brick
M2 = solid, uncracked C20/25 concrete
M3 = unplastered hollow concrete block
Cold-rolled steel, electrolytically galvanized, copolymer.
Universal mechanical anchor with complementary double expansion.
Designed as a faster, more economical alternative to chemical anchors.
Hexagonal screw 8.8.
Maximum load in kN (± 100 kg):
M1 = uncoated hollow brick
M2 = solid, uncracked C20/25 concrete
M3 = unplastered hollow concrete block

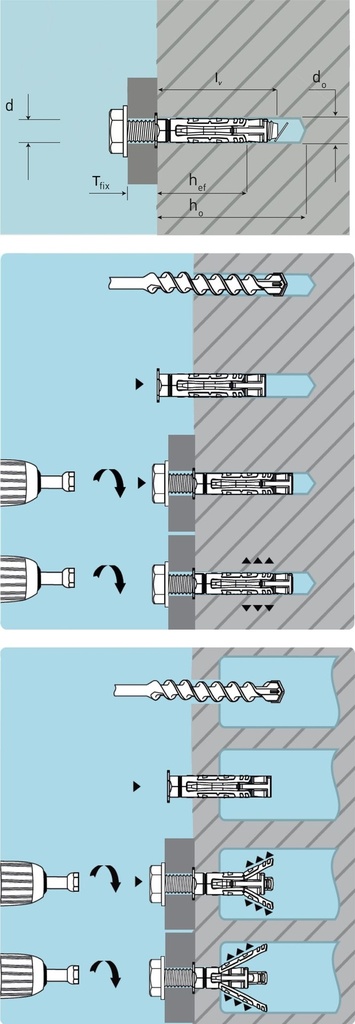

| lv: 73 mm |
| do: 15 mm |
| ho: 85 mm |
| Box/carton: 25/150 pcs |
| Tfix: 15 mm |
| M1: 0.6 kN |
| M2: 4.45 kN |
| M3: 0.9 kN |
