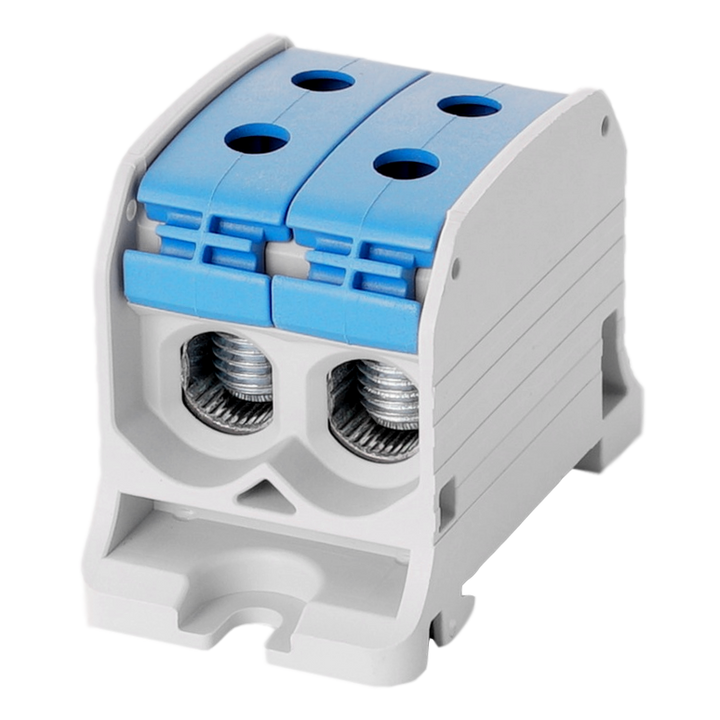

Bornier de racc. RKA 1p double 50mm² Cu+Al bleu
I(max):
1000Vac/dc 150A Cu
600V 150A Cu/120A Al
additional measurement terminal integrated by default
IP20
halogen-free, self-extinguishing
captive screws with constant tightening torque
can be coupled with RKA 95mm² terminals
mounting on DIN rail or by screws
earth terminal color according to standard IEC60947-7-1
with profile for marking
for Cu and Al conductors
1000Vac/dc 150A Cu
600V 150A Cu/120A Al
additional measurement terminal integrated by default
IP20
halogen-free, self-extinguishing
captive screws with constant tightening torque
can be coupled with RKA 95mm² terminals
mounting on DIN rail or by screws
earth terminal color according to standard IEC60947-7-1
with profile for marking
for Cu and Al conductors
| I(max): A A |
| Input section: mm² mm² |
| Output section: mm² mm² |
| Color: bleu |
| Number of connections 50 mm²: 4 |
