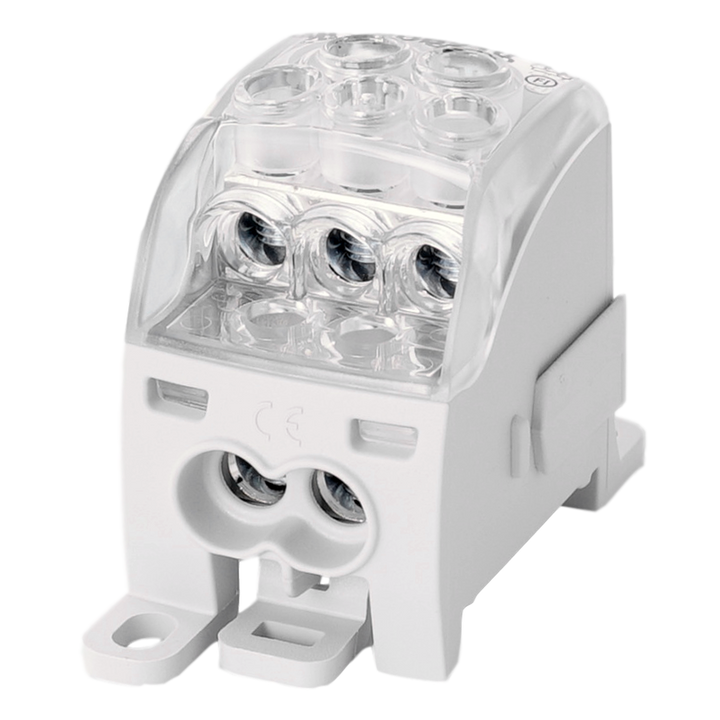

Borne de distr. PDB210 1p 35, 2x25, 3x16mm² Cu+Al grise
PDB210
I(max) : 1000Vac/dc 214A Cu
IP20
halogen-free, self-extinguishing
captive screws with constant tightening torque

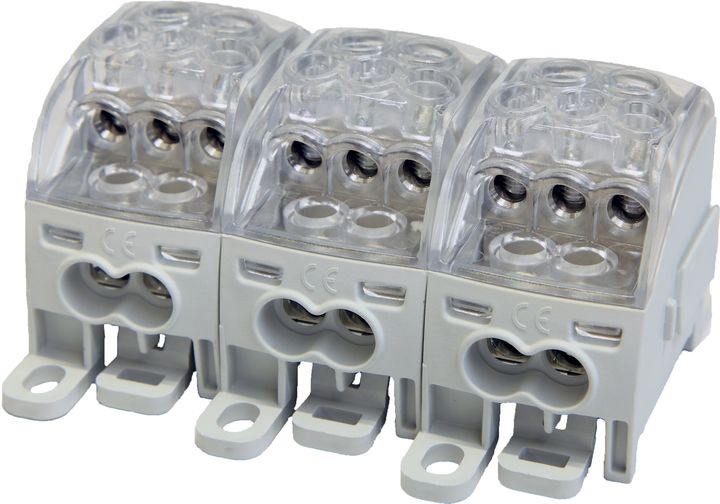

can be coupled with PDB210 terminals
DIN rail or screw mounting
for Cu and Al conductors
I(max) : 1000Vac/dc 214A Cu
IP20
halogen-free, self-extinguishing
captive screws with constant tightening torque
can be coupled with PDB210 terminals
DIN rail or screw mounting
for Cu and Al conductors
| I(max): 214 A |
| Input section: mm² mm² |
| Output section: mm² mm² |
| Color: gris + transparent |
| For drivers: Cu + Al |
| Number of connections 16 mm²: 3 |
| Number of connections 25 mm²: 2 |
| Number of connections 35 mm²: 1 |
