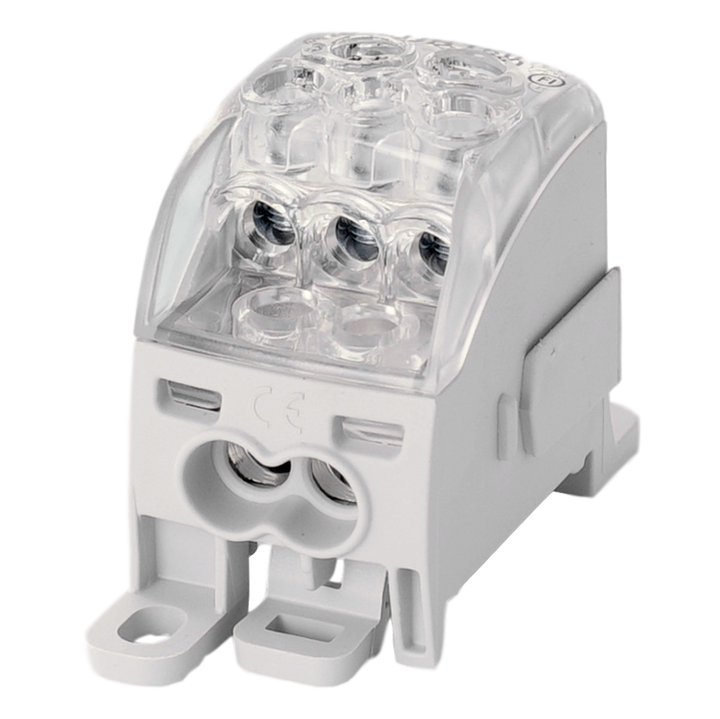

Borne de distr. PDB160 1p 25, 3x16, 3x10mm² Cu+Al grise
PDB160
I(max) : 1000Vac/dc 164A Cu
IP20
halogen-free, self-extinguishing
captive screws with constant tightening torque

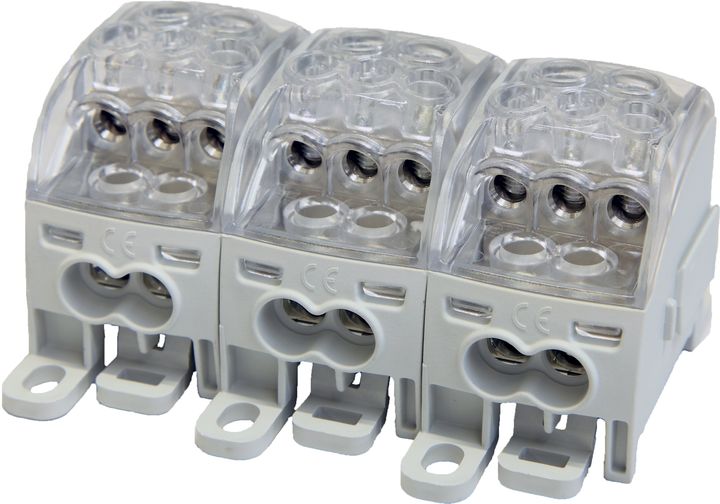

can be coupled with PDB160 terminals
DIN rail or screw mounting
for Cu and Al conductors
I(max) : 1000Vac/dc 164A Cu
IP20
halogen-free, self-extinguishing
captive screws with constant tightening torque
can be coupled with PDB160 terminals
DIN rail or screw mounting
for Cu and Al conductors
| I(max): 164 A |
| Color: gris + transparent |
| For drivers: Cu + Al |
| Number of connections 16 mm²: 3 |
| Number of connections 25 mm²: 1 |
| Number of connections 10 mm²: 3 |
