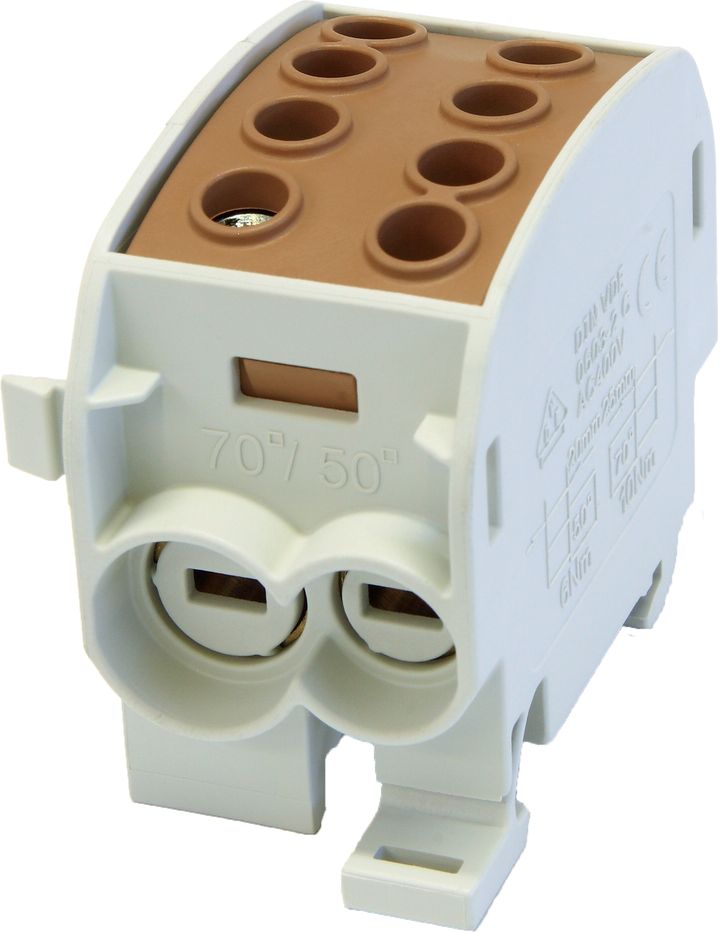

Borne de dériv. HLAK70 C 1p 2x70, 2x50mm² Cu+Al L brun
I(max): 1000Vac/dc 300A Cu / 185A Al
IP20
halogen-free, self-extinguishing
earth terminal color according to standard IEC60947-7-1
captive screws with constant tightening torque
can be coupled with HLAK70 terminals
DIN rail mounting
IP20
halogen-free, self-extinguishing
earth terminal color according to standard IEC60947-7-1
captive screws with constant tightening torque
can be coupled with HLAK70 terminals
DIN rail mounting
| I(max): 300 A |
| Input section: mm² mm² |
| Output section: mm² mm² |
| Color: brun |
| For drivers: Cu + Al |
| Number of connections 50 mm²: 2 |
| Number of connections 70 mm²: 2 |
