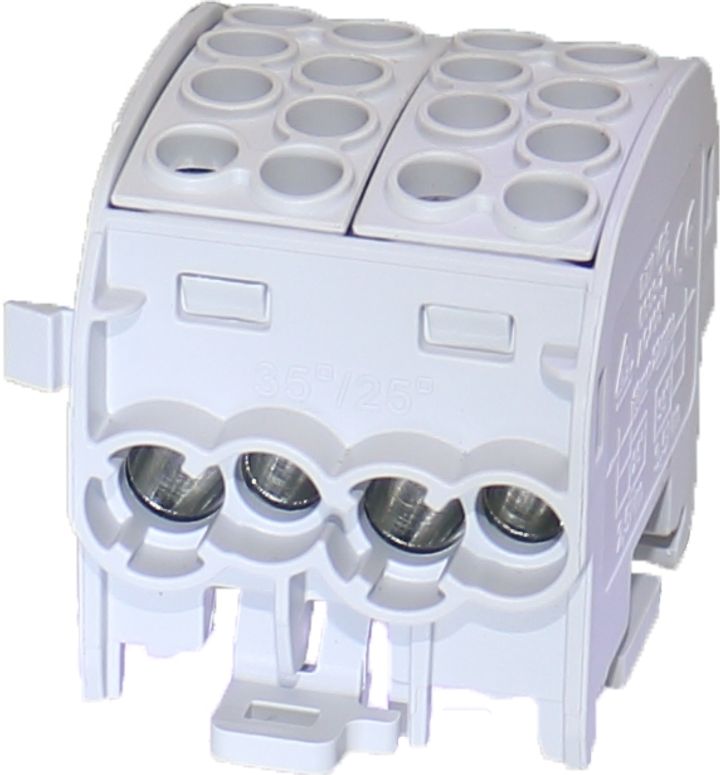

Bornier de dériv. HLAK35 C 1p 4x35, 4x25mm² Cu L noir
I(max) : 1000Vac/dc 202A Cu / 125A Al
IP20
halogen-free, self-extinguishing
color of ground terminal according to IEC60947-7-1 standard
captive screws with constant tightening torque
can be coupled with HLAK25 and HLAK35 terminals
DIN rail mounting
IP20
halogen-free, self-extinguishing
color of ground terminal according to IEC60947-7-1 standard
captive screws with constant tightening torque
can be coupled with HLAK25 and HLAK35 terminals
DIN rail mounting
| I(max): 428 A |
| Input section: mm² mm² |
| Output section: mm² mm² |
| Color: noir |
| For drivers: Cu |
| Number of connections 25 mm²: 4 |
| Number of connections 35 mm²: 4 |
