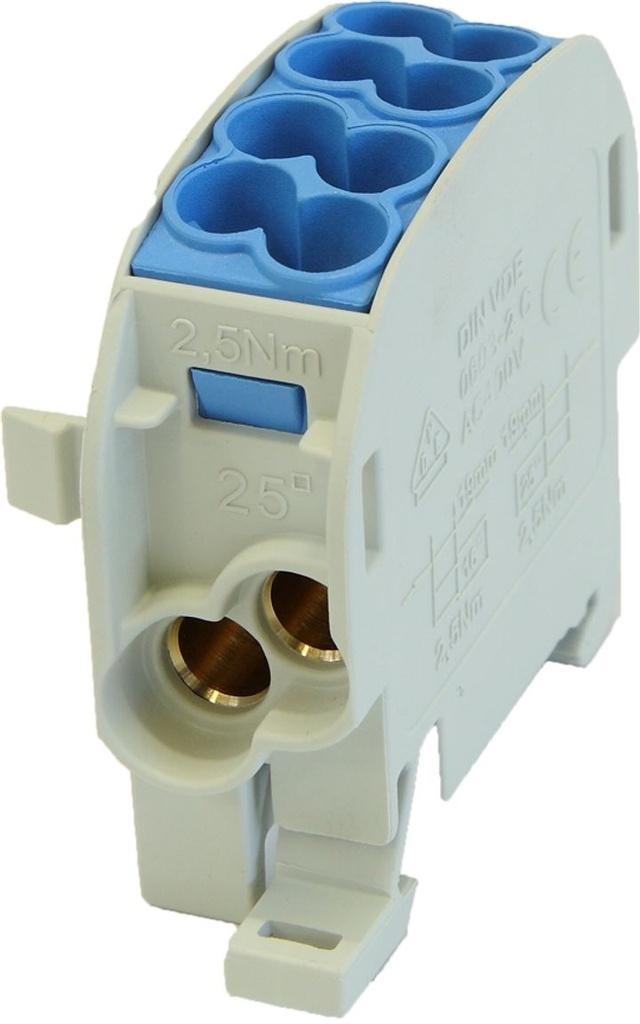

Borne de dériv. HLAK25 C 1p 2x25, 2x16mm² Cu+Al N bleue
I(max) : 1000Vac/dc 152A Cu / 100A Al
IP20
halogen-free, self-extinguishing
width of one module
color of ground terminal according to IEC60947-7-1 standard
captive screws with constant tightening torque
can be coupled with HLAK25 and HLAK35 terminals
DIN rail mounting
IP20
halogen-free, self-extinguishing
width of one module
color of ground terminal according to IEC60947-7-1 standard
captive screws with constant tightening torque
can be coupled with HLAK25 and HLAK35 terminals
DIN rail mounting
| I(max): 152 A |
| Input section: mm² mm² |
| Output section: mm² mm² |
| Color: bleu |
| For drivers: Cu + Al |
| Number of connections 16 mm²: 2 |
| Number of connections 25 mm²: 2 |
