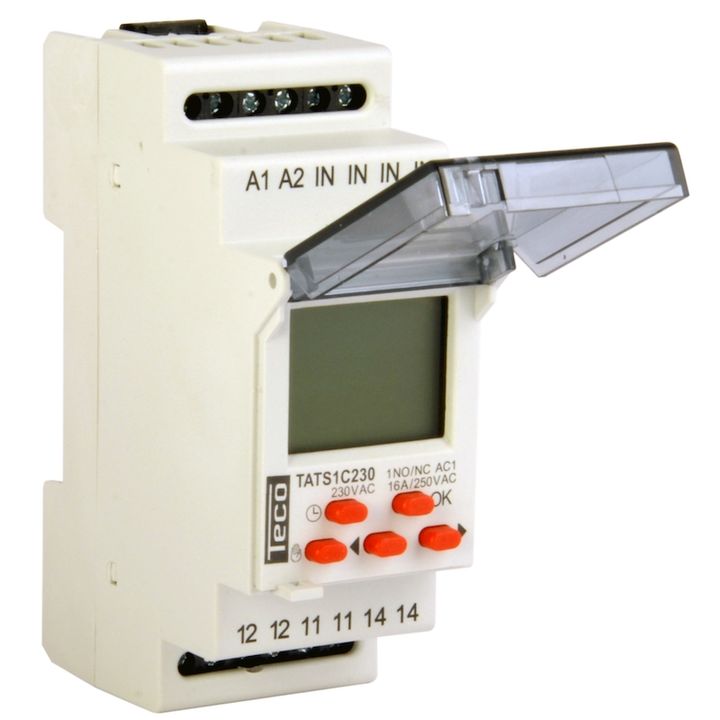

Astro Time Switch Teco 1w 16 A 230V replaceable battery
1 channel
backlit display
nominal voltage: 230Vac 50/60Hz
rated power consumption: 1.45W
clock autonomy in the event of power failure: 3 years
programming memory in the event of power failure: 5 years
switches according to sunrise and sunset, calculated on the basis of coordinates (longitude and latitude)
programmable offset from sunrise or sunset
function can be suspended at night
1 programmable input to force the switch into "manual off", "manual on" or "automatic" mode with an external switch
summer/winter time changeover: manual or automatic
35mm rail mounting (EN60715)
operating temperature range: -20°C to +60°C
backlit display
nominal voltage: 230Vac 50/60Hz
rated power consumption: 1.45W
clock autonomy in the event of power failure: 3 years
programming memory in the event of power failure: 5 years
switches according to sunrise and sunset, calculated on the basis of coordinates (longitude and latitude)
programmable offset from sunrise or sunset
function can be suspended at night
1 programmable input to force the switch into "manual off", "manual on" or "automatic" mode with an external switch
summer/winter time changeover: manual or automatic
35mm rail mounting (EN60715)
operating temperature range: -20°C to +60°C
| Modules: 2 |
| I(n): 16 A A |
| U(n): 230 |
| Contact: 1 |
| U(n) contacts: 250 Vac |
