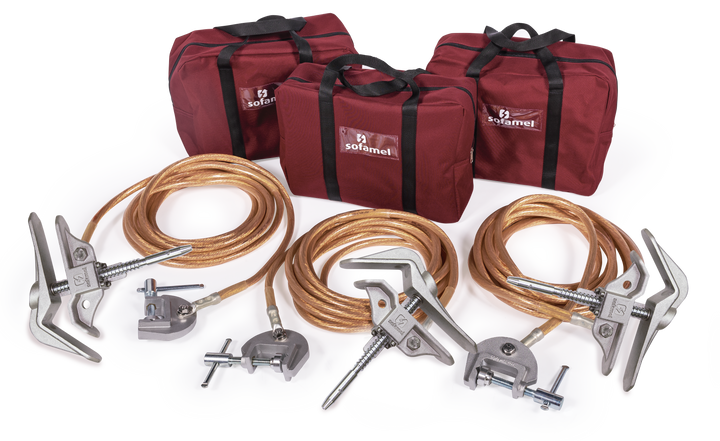

Earthing equipment for HV substations 25KA/1s
Phase earthing and short-circuiting equipment for high-voltage transformer substations.
Its main purpose is to protect workers against accidental switching on or voltage recurrence during repair work.
Complies with IEC 61230 standard.
Consists of:
3 aluminum-alloy TMC clamps with clamping screws for cylindrical conductors with diameters ranging from 10 to 70 mm, max. 90 x 100 mm plates and max. 50 x 120 mm flexible distribution bars.
3 copper cables with PVC insulation. Cross-section and length according to model.
3 TT-50 grounding clamps.
3 covers for transport and storage of equipment.
Its main purpose is to protect workers against accidental switching on or voltage recurrence during repair work.
Complies with IEC 61230 standard.
Consists of:
3 aluminum-alloy TMC clamps with clamping screws for cylindrical conductors with diameters ranging from 10 to 70 mm, max. 90 x 100 mm plates and max. 50 x 120 mm flexible distribution bars.
3 copper cables with PVC insulation. Cross-section and length according to model.
3 TT-50 grounding clamps.
3 covers for transport and storage of equipment.
| Length: 8 mm |
| sectionCable: 95 mm² |
| Intensity: 25 KA/1s |
